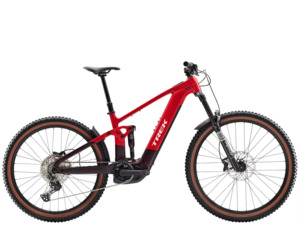

TREK - RAIL+ 5 Gen 5
The Rail 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything. Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel Fork RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel Shock RockShox Deluxe Select RT, 205 mm x 65mm Hub front Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle Hub rear Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle Skewer rear Bontrager Switch thru-axle, removable lever Rim Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve Tyre Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi Tyre part Bontrager TLR sealant, 180 ml/6 oz Rim strip Bontrager TLR Max tyre size Frame: 27.5x2.60", Fork: See manufacturer Charger Bosch standard 2A, 230V, smart system Controller Bosch System Controller BRC3100, smart system Motor Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) E-bike Classification Class 1 Shifter Shimano Deore M6100, 12-speed Rear derailleur Shimano Deore M6100, long cage Crank arm E thirteen E spec Plus, 160 mm length Cassette Shimano Deore M6100, 10-51, 12-speed Chain Shimano Deore M6100, 12-speed Pedal VP-536 nylon platform Max. chainring size 1x: 36T Saddle Bontrager Verse P3, steel rails Seatpost TranzX JD-YSI34, Dropper Post, internal routing, 34.9 mm Handlebar Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width Grips Bontrager XR Trail Comp, nylon lock-on Stem Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Head set Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper Brake rotor Shimano RT66, 6-bolt, 203 mm Rotor size Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer Mudguard Trek 27.5" custom fender Weight M – 25.28 kg/55.74 lb (with TLR sealant, no tubes) Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
