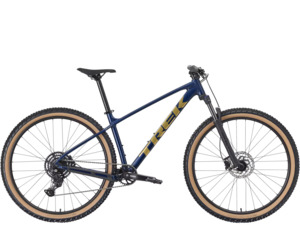

TREK - Marlin 5 Gen 3 (2026)

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike. Frame Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew Fork SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset, 100 mm travel Hub front Formula DC-20, alloy, 6-bolt, 100x5 mm Skewer front Trek Thru-Skew Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm Skewer rear 173x5 mm QR Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve Spokes 14 g stainless steel, black Tyres Bontrager Montrose Comp, wire bead, 30 tpi Shifter Shimano U4000, 9-speed Rear derailleur Shimano CUES U4000 Crank Shimano CUES U4001, 32T, 52mm chain line Bottom bracket Shimano, 73 mm, threaded cartridge, 122.5 mm spindle Cassette Shimano LINKGLIDE LG300, 11-46, 9-speed Chain Shimano LG500 Pedal VP-536 nylon platform Saddle Bontrager Verse Short, stainless steel rails Seatpost Bontrager alloy, 31.6 mm, 12 mm offset Handlebar Bontrager alloy, 31.8 mm Grips Trek Line Comp, nylon lock-on Stem Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length Head set Semi-integrated, 1-1/8" Brake rotor Shimano RT26, 6-boltm Brake Set Shimano MT200 hydraulic disc Weight M - 15.10 kg / 33.29 lbs Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
