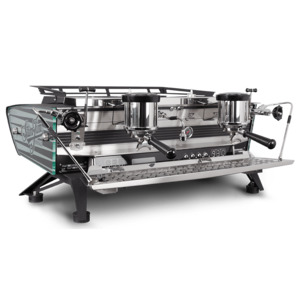

Kees Van Der Westen Slim Jim

Approximate dimensions and footprints of the Slim Jim are shown in the illustrations. The black circles are the anti-vibration feet. Please note the dimensions are the same for the Duette and Triplette.

The optimal countertop feedthrough is 60mm (2.4″). Note that the steam wands will protrude a few centimeters on the left and right side. WEIGHT

The countertop should provide a solid base to carry the full weight of the machine: roughly 125kg for both the Duette and Triplette. NOTES

Water supply from a water treatment system should be within 1.5m (5ft) of the machine. The water supply hose that comes with the machine has a half ball at the end of the 3/8″ nut connector. Discharge should not be further away than 1.5m, have an internal diameter of at least 32mm (1″ 3/8) and should be fitted with a trap. There must be space nearby to locate the water pump with its electrical motor.
