RAM Round Base - C Series - with #8-32 Hardware for Garmin Fishfinders

RAM-202-G4U RAM® Ball Adapter with #8-32 Hardware for Garmin Fishfinders
Features

Included is a hardware pack for assembly of your Garmin Fishfinder.
2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjust-ability
Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
Backed by a lifetime warranty

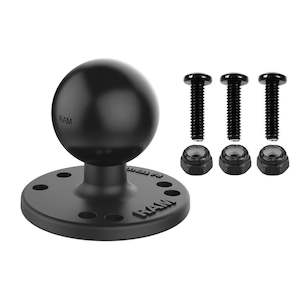

The RAM-202-G4U consists of a 1.5" diameter rubber ball connected to a flat 2.5" diameter base. This mount has a three-hole pattern which will connect to the base of the Garmin Marine GPS unit swivel mounts. Included is a hardware pack for assembly of your Garmin Fishfinder.

Specs & Features

Compatible Devices

Garmin

Striker 4

Striker 4dv

Striker Plus 4cv

Striker Vivid 4cv

echo 100

echo 150

echo 300c

ECHOMAP Plus 42cv

ECHOMAP Plus 43cv

ECHOMAP Plus 44cv

ECHOMAP Plus 45cv

ECHOMAP UHD2 6"

Hardware included:

(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts

Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812" (46.0mm)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" Rubber Ball Size - C Series
Weight:
100 grams (0.22 lbs)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
