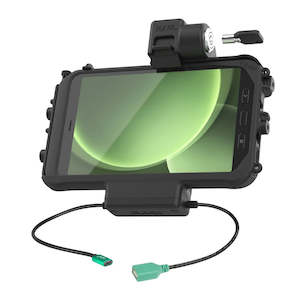

RAM Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3

RAM-HOL-SAM58CPKLT-AU RAM® Low-Profile Locking Power Single USB Dock for Tab Active5 & 3
Features

- Key-locking form-fit power data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™
- Slim-profile design at 2.28" depth with metal reinforcement plate
- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Backed by a 3-year warranty

The low-profile RAM® Power Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLT-AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience.

Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more.

This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner.

Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is a cable clamp and zip ties for cable management.

Compatibility

Samsung

Tab Active3 and Tab Active5

Hardware included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(4) Large Cable Ties
(10) Small Cable Ties

Hole pattern

4-Hole AMPS: 1.181" x 1.496"

Materials

High strength composite

Input voltage

5.3-5.4VDC

Output voltage

5VDC

Power output

500mA

Input connector

USB Type-C Female

Input cable length

215mm

output connector

USB Type-C Female

Output cable length

215mm

Transfer speed

480Mbps

Warranty

3 year warranty

Weight

490 grams / 1.08 lb

Additional Information

This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
