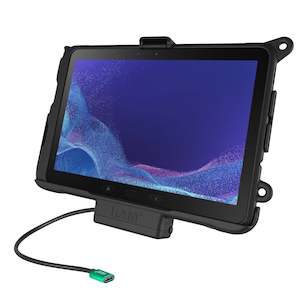

RAM USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro
RAM-HOL-SAM52CPU RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro
Features
- Powered dock provides charging capabilities for Samsung Galaxy Tab Active4 Pro and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
- Access to speakers, mics, and headphone jack remain while device is docked
- Easily insert and remove the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with one hand
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Backed by a 3-year warranty The RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU) features integrated pogo pins that power the device via the USB Type-C connector. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a USB Type-C female pigtail for power, as well as one cable clamp and zip ties for cable retention. Compatible Devices
Galaxy Tab Active Pro
Galaxy Tab Active4 Pro Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496" Materials
High strength composite input voltage
5.3-5.4VDC output voltage
5VDC power output
500mA input connector
USB Type-C Female input cable length
215mm Warranty
3 year warranty Weight
0.71 lb Additional Information This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options
This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options
