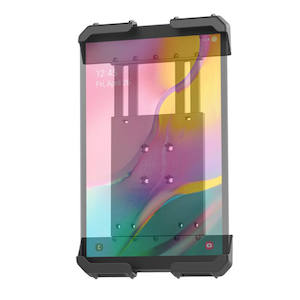

RAM Tab-Tite Cradle for 10.1" - 10.5" Tablets with or without Case with 1.5" Ball

RAM-HOL-TAB33-202U RAM® Tab-Tite™ Holder for 10.1" - 10.5" Tablets with or without Case with round base and 1.5" Ball
Features
This Spring-loaded holder secures tablets (Samsung Tab S6 Lite, A7 10.4, S5e, and A 10.1, Lenovo K10 Tablet or similar with or without case).
Interchangeable end cups allow you to cheaply modify the holder when upgrading to a new tablet.
Includes RAM® C Series round ball base for attaching a double socket arm.
Made of high-strength composites for durability and reliability in the most demanding environments
The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the of your tablet, enabling access to all buttons, ports, and tablet functions.
Included is a set of four nuts and bolts to attach the holder to the round base. For off road environments and use in open cockpit applications, we recommended the use of a tether to assist in securing your device.
The RAM® Tab-Tite™ holder is compatible with any tablet within the listed dimensions.
HOLDER DIMENSIONS
H: 242 - 299mm (9.55" - 11.8")
W: 166 - 176.5mm (5.5" - 6.95")
D: 5 - 16mm (.2" -.66")
Compatibile Devices Include:

Compatibile Devices Include:
Lenovo
K10 Tablet with or without case
Samsung
Tab A 10.1 (2016) with or without case
Tab A7 10.4 with or without case
Tab A8 10.5 with case

Tab A8 10.5 with case

Tab A9 with case

Tab S5e with or without case
Tab S6 Lite with or without case

Social

Mobile Rhino T100 with case

Ball Size

1.5" C Series

HOLE PATTERN
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)

HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
MATERIALS
High strength composite

Marine Grade Aluminium Alloy
