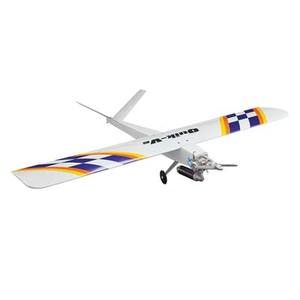

Quik-V6 Q500 Sport Pylon Racer ARF .40-.55, 52" by Great Planes

SPECIFICATIONS

Length: 40.5" (1030mm)
Wingspan: 52" (1320mm)
Weight: 3.6 - 3.75lbs (1630 - 1700g)
Wing Area: 503 sq in (32.4 sq dm)
Wing Loading: 16.5 - 17.2 oz sq/ft (50 - 52.5 g/sq/dm)
Wing Type: Semi-symmetrical
Center of Gravity (CG): 3" (76mm) back from the leading edge of the
wing measured at the fuselage
Control Throws: Low Rate High Rate
Elevator: 5/32" (4mm) 7.3° 7/32" (6mm) 10.2°
Rudder: 1/8" (3mm) 5.8° 7/32" (6mm) 10.2°
Ailerons: 5/32" (4mm) 7.2° 7/32" (6mm) 10.2°
