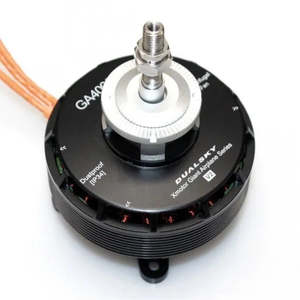

Dual Sky GA4000.7 180kv 4300w Brushless Outrunner Motor 10-12s Lipo 700g, 20x10
GA4000.7 Specifications
0
0
- Item NO.: 51553
- RPM/V: 180 RPM/V
- Weight: 700g (body only), 815g (w/ accessories)
- Outer Diameter: 89mm
- Length w/ mounts: 80.2mm
- Length (overall): 123mm
- Diameter of Shaft: 12mm (internal), 8mm (output)
- Mounting holes pitch: 71mm to 75mm
- Slots, Poles: 24, 28
- Idle Current @ 10V: 1.3A
- Resistance: 23 mOhm
- Nominal Voltage: 30-51V, 10-12S Lipo
- Peak power 15s : 4300W (5.8HP) @ 8000RPM
- Bursts current 15s : 100A
- Cruising power 8 mins : 2100 W (2.8 HP)
- Recommended ESC: Summit 120HV
- Propeller: 20x10, 20x12, 21x12, 22x10
XOAR 22x10 wooden, 87A@44.4V
APC 21x12WE, 13KG, 95A @44.4V
- Weight of sports airplane: Up to 10.5kg
- Weight of 3D airplane: Up to 6.8kg
- Applications: Designed for 35-40cc class 3D airplanes or UAV systems.
×
