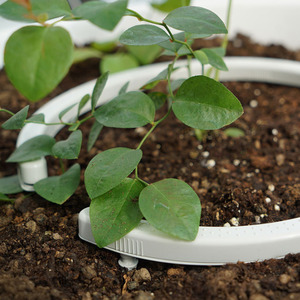

Netafim Netbow Ring Feeder

NetBow™ is an innovative, user-friendly container irrigation multi-outlet dripper arc. NetBow™ was developed to address the needs of high-value soilless pot-irrigated crops such as blueberries and Cannabis, that require unique irrigation and fertigation knowhow. With NetBow™, roots develop in every square inch of the container including the top layer, where root development is critical, ensuring your crops reach their full growth potential and guarantees better ROI

Benefits

Uniform water distribution, top to bottom with no blind spots, thanks to surface 8 dripping outlets

High clogging resistance – NetBow™ features 8 of Netafim’s high clogging-resistant Typhoon drippers that guarantees a lower risk of clogging.

The user-friendly device simplifies installation and operation – with NetBow™ is easy to install & connect to micro-tubes, and placement in the container is easy.

Options for connecting to diverse hub drippers like PCJ, PC, or Uniram™ with Dr Zip

What value do I get from NetBow™?

Uniform growing

Optimal root zone

Fewer diseases

Reduced labour

Better ROI (maximized profit)

Specifications

Compatible with 20-40 litre containers

Diameter: 250mm and 120mm

Flow Rate: 8 dripping outlet

Hub Dripper to be either a 2, 4, 6 or 8 L/hr Dripper

The flow from each dripping outlet will be determined by the hub dripper, based on the pressure developed in the NetBow inlet

the flow of 2.0 L/hr each at 1.0 bar (14.5 PSI)

Superb chemical and UV resistance for extended durability

Light grey colour for improved light reflection

3mm connection for 3mm tube
