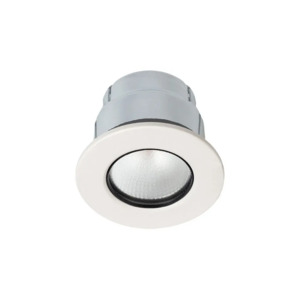

Zela Fixed Prismatic Lens Fire-Rated Downlight The Lighting Centre NZ

NZ designed and engineered Medium Beam LED Downlight

Fire Resisting Rating FRR up to 60 minutes when used with GIB Fire rated Floor/Ceiling Systems, for more information please.

Rim: 70mm Diameter
Cut Out: 57mm Diameter
Height: 51mm

IP Rating: IP65 – Suitable for wet areas

Classification: IC-F – Insulation may abut to side of and/or cover this downlight. The high quality driver with this downlight can also be covered and abutted with insulation.

Clearance to Timber/Combustible elements:
Overall Depth Clearance: 190mm (includes fixture)
Side Clearance: 0mm (from side of fixture)

Lamp: LED Lamp 7.7W (wattage includes driver)
Lamp Life: L70 60,000 hours
Colour Temperature: Various, see below
Beam Angle: 40 or 55 Degrees

Colour rendering options – select below
Pro Series
CRI: 90 - TM-30-15 Rf-90 - TM-30-15-RG-101
Light Output: 690 lumen
Art Series
CRI: 97 - TM-30-15 Rf-95 - TM-30-15-RG-101
L...
