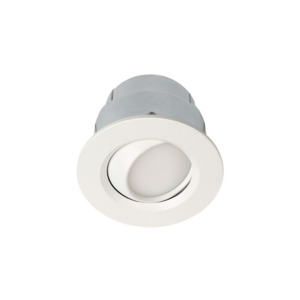

Zela Tilt Opaque Lens Fire-Rated Downlight The Lighting Centre NZ

NZ designed and engineered Wide Beam Downlight with 28 Degree Tilt

Fire Resisting Rating FRR up to 60 minutes when used with GIB Fire rated Floor/Ceiling Systems, for more information please.

Rim: 86mm Diameter
Cut Out: 68mm Diameter
Height: 52mm

IP Rating: IP65 – Suitable for wet areas

Classification: IC-F – Insulation may abut to side of and/or cover this downlight. The high quality driver with this downlight can also be covered and abutted with insulation.

Clearance to Timber/Combustible elements:
Overall Depth Clearance: 190mm (includes fixture)
Side Clearance: 0mm (from side of fixture)

Lamp: LED Lamp 9.4W (wattage includes driver)
Light Output: 650 lumen
Colour rendering: Pro Series CRI90 - TM-30-15 Rf-90 - TM-30-15-RG-101
Lamp Life: L70 60,000 hours
Colour Temperature: Various, see below
Beam Angle: 90 Degrees

Lower and Higher output version available on request, please call for details

Fitting supplied ...
