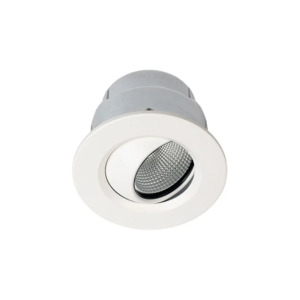

Zela Tilt Ultra Low Glare Lens Fire-Rated Downlight The Lighting Centre NZ

NZ designed and engineered Medium Beam Downlight with 28 Degree Tilt

Fire Resisting Rating FRR up to 60 minutes when used with GIB Fire rated Floor/Ceiling Systems, for more information please.

Rim: 86mm Diameter
Cut Out: 73mm Diameter
Height: 68mm

IP Rating: IP65 – Suitable for wet areas

Classification: IC-F – Insulation may abut to side of and/or cover this downlight. The high quality driver with this downlight can also be covered and abutted with insulation.

Clearance to Timber/Combustible elements:
Overall Depth Clearance: 190mm (includes fixture)
Side Clearance: 0mm (from side of fixture)

Lamp: LED Lamp 9.4W (wattage includes driver)
Lamp Life: L70 60,000 hours
Colour Temperature: Various, see below
Beam Angle: 40 or 55 Degrees

Colour rendering options – select below
Pro Series
CRI: 90 - TM-30-15 Rf-90 - TM-30-15-RG-101
Light Output: 810 lumen
Art Series
CRI: 97 - TM-30-15 Rf-95 - TM-30-...
