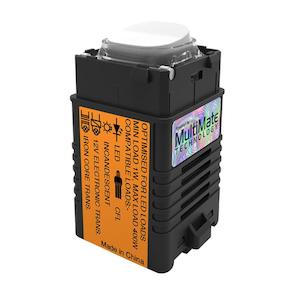

LEDsmart+ Multimate Push Button Hour Timer for LED Lighting Diginet - MMTH/PB

Description:
The LEDsmart Push Button Hour Timer is programmable between ¼ hour and 7½ hours, and features MultiMate™ technology for built-in multi-way control.
Features:
• Built-in multiway control.
• Programmable between ¼ hour and 7½ hours, in ¼ hour steps.
• Simple 3-step timer interval setting.
• Override function to prevent lighting turning off automatically.
• Advanced warning option dims to 50% for 5 minutes after time out.
• Programmable maximum level and off state indicator.
• White LED, illuminated bezel.
Functions:
• Single-way control
• Two-way control
• Multi-way control
• Indicator - white LED
• Integrated tap on /off switch
• Programmable minimum
• Programmable kick-start function
• Programmable off-state indicator
• Programmable timeout period

Specifications:
Rated average life: 5000hrs
Wattage: 400W
Operating Temperature (Max): 50
Height: 45mm
Width: 24mm
Length: 24mm
IP Rating: IP20
Line Voltage Frequency: 50Hz
Nominal Line Voltage: 220V - 240V AC
Connection Type: 2-Wire Active/Load
Incompatible Load Types: Ceiling Sweep Fan Motors
Indicator Colour: Black
Integrated On/Off Switch: No
Minimum Load: 2W
Minimum Timer Setting: ¼
Maximum Timer Setting: 7½
Programmable: Yes
Dimmable: Yes
Order Code:
MMTH/PB
All products are priced in New Zealand Dollars (NZD).
