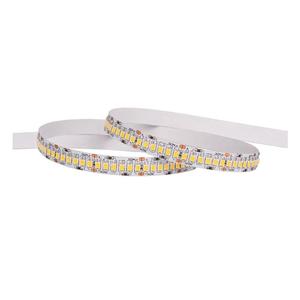

16.4w Axiom 2300 High Powered LED Strip in 3000k, 4000k or 6000k

6000k Daylight 2100 lumens Task lighting, garages, retail displays Choosing a driver

Allow 16.4w for every metre and add about 20% headroom. One 5 metre length draws 82w, so a 100w 24v driver suits. A full 15 metre run from a single feed draws 246w and needs a 300w driver. For longer installs, split the strip into runs and feed each one separately. To dim the strip, pair it with a dimmable 24v driver and a compatible dimmer. Mounting and heat

At 16.4w per metre this strip produces noticeable heat, so mount it in an aluminium profile to draw heat away, protect the strip and extend its life. Choose a profile at least 9mm wide inside to suit the 8mm strip, and add a diffuser for the smoothest line.

IP20 rated for dry indoor locations only.
