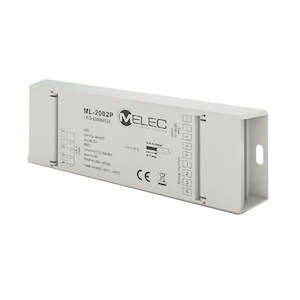

Accessories - 0-10V 4 Output Channel LED Dimmer with 12-36V DC M-Elec - ML-2002

Description:
M-Elec’s new 0-10V 4 channel dimmer allows full control of strips and other constant voltage products. 0-10V gives superior dimming control with 256 levels on each channel. Working with the power amplifier (ML-3002), 0-10V dimmer controller (ML-DIM-S) and other 0-10V inputs such as Dynalite and C-Bus systems.

Replaces ML-V-DIM.

Feature:

- Replaces ML-V-DIM
- Full control of strips
- Superior dimming control
- 256 levels of dimming on each channel
- 4 output channels
- 5 year warranty

Specification:

- Input Voltage: 12-36VDC
- Input control: 1-10V signal
- Input channels: 4
- Output power: 4x (60-180)W
- Output channels: 4
- Warranty: 5 years

Dimension:

- Length: 166mm
- Height: 23mm
- Width: 53.4mm
All products are priced in New Zealand Dollars (NZD).
