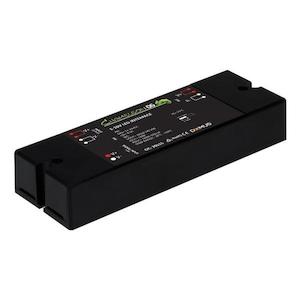

CHAMELEON-06 Single Channel 0-10V LED Interface Controller - 1 Channel Domus Lighting - 20115

Description:
The CHAMELEON-06 is an interface designed for 0-10V signals. Designed for use with constant voltage 12-24VDC lighting products the CHAMELEON-06 offers seamless integration between automation systems and luminaires. Accepts standard 0-10V signal generated from any automation system. Featuring 1CH of dimming allowing control over single colour LED lighting products.
For manual dimming control for situations were an automation system is not used a resistive pot can be used. These low voltage 0-10V dimmers are designed to fit into standard HPM or Clipsal switch plates.
Specifications
- Product Family: Chameleon
- Length (mm): 169mm
- Width (mm): 58mm
- Height (mm): 28mm
- Dimmable: Yes
- IP Rating: IP20
- Type of interface: 1CH controller
- Method of control: 0-10v
- Method of dimming: PWM (Pulse width modulation)
- Housing colour: Black plastic colour housing
- Output current (A): 1x8A
- Input Voltage: 12v-24vDC
- Output wattage (W): 12vDC-96W per channel. (x1) - 24vDC-192w per channel. (x1)
- Expandable signal: Yes
- Requires: Constant voltage 12-24vDC LED driver
- Application: Controller
- Warranty Period: 3Y
- Warranty Type: Replacement
Order Code: 2015
Product Code: CHAM-06
: 1CH 0-10v interface
