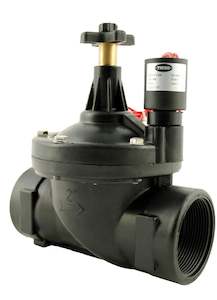

50 mm (2”) Solenoid Valve - Normally Closed

TWSS brand Solenoid Valves are constructed with high quality materials and also has proven reliability. The Water Sprinkler Shop valves are suitable for Industrial, Municipal, Farm, and Home Applications.

- Flow Control
- Manual On/Off
- Normally Closed
- Choice of Voltage to Suit Your Requirements
- BSP Female Threads
- UV Resistant
- Approximate Measurement Of Unit: 170mm (L) x 125mm (W) x 205mm (H)

Port Size: 50 mm (2")

Flow Rate: 30 M3/H

Body Material: Nylon Reinforced

Seal Ring Material: NBR

Max Media Temperature: 800C

Operation Pressure: 0.2 - 10 BAR

CURRENT DRAW FOR VOLTAGE AS FOLLOWS

12VDC: 0.46A

24VDC: 0.19A

24VAC: 0.38A

230VAC: 0.15A

Voltage available: 24 v AC, 220/230 V AC (240 v AC), 12 v DC, 24 v DC

SKU: SV50 - Voltage Specifications

If Measuring your Thread with a Tape or Ruler - 2" / 50mm BSP = 58.1mm
