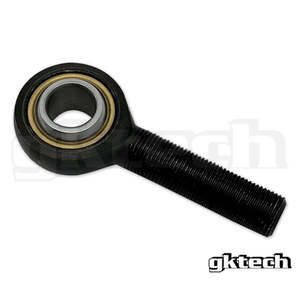

Gktech PCMR12TES Replacement Rod End

Replacement PCMR12TES bearing

Used in the following GKTECH products:
GT86 Toe arms - GT86-TOEX
JZX100 Toe Arms PCMR12TES IMPERIAL METRIC ROD END BALL BORE SIZE ROD END BALL BORE SIZE 0.7500 in 19.0500 mm ROD END BALL WIDTH ROD END BALL WIDTH 0.8750 in 22.2250 mm THREAD LENGTH THREAD LENGTH 1.7500 in 44.4500 mm THREAD SIZE THREAD SIZE 3/4 - 16 UNF RH 3/4 - 16 UNF RH ROD END HEAD DIAMETER ROD END HEAD DIAMETER 1.8700 in 47.4980 mm ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE 24 degrees 24 degrees ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg) 30,290 lbs 13,739 kg ROD END MATERIAL ROD END MATERIAL Chromoly Chromoly LUBRICATION LUBRICATION PTFE lined PTFE lined
