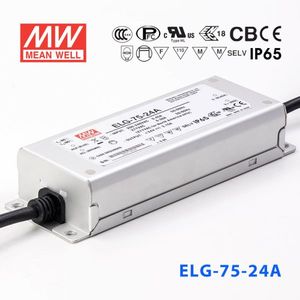

Mean Well Power Supply ELG75

Features 180~305VAC wide input range Built-in active PFC Protections: Short circuit / Over current/ Over voltage/Over temperature No load power consumption <0.5W High efficiency up to 90% Suitable for LED lighting and street lighting applications Cooling by free air convection 100% full load burn-in test 5 years warranty Categories: Hard Wire, Power Supply Tags: LED Driver, power box, Power Supply

- Reviews (0) Output DC Voltage 24V Constant Current Region 12~24V Rated Current 3.15A Current Range 75.6W Ripple & Noise 200mVp-p Voltage Adj. Range Adjustable for A-Type Only(via built-in potentiometer );21.6~26.4V Voltage Tolerance ±3.0% Line Regulation ±0.5% Load Regulation ±1.0% Setup, Rise Time 500ms,100ms/230VAC Hold-up Time 10ms/230VAC Current Adj. Range Adjustable for A-Type Only(via built-in potentiometer );1.57~3.15A Input Voltage Range 180~305VAC 254~431VDC(Please refer to “ Static Characteristic") Frequency Range 47~63Hz Power Factor PF≥0.95/230VAC,PF≥0.92/27...
