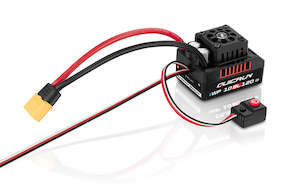

Hobbywing QuicRun WP 10BL120 G2 ESC
Powerful ESC for 1/10 cars
What is in the box?
- (1) QUICRUN 10BL120 WP G2 ESC
- Power wires - factory installed
- HOBBYWING decal
- Accesssories
Bottomline:
- Excellent waterproof and dustproof performance, it is easy to deal with various climatic conditions and harsh environment.
- Smart freewheeling technology makes the esc have higher driving efficiency and lower operating temperature, and the stability and reliability of the esc are further improved.
- Built-in powerful switch mode BEC, continuous current up to 5A, instant up to 10A, and support 6V/7.4V adjustable, easy to drive various powerful and high-voltage steering servo.
- Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
- It has an independent programming port. When connecting the program card, it is not necessary to pull the throttle cable out of the receiver, which is more convenient to use.
Specifications:
- Cont. / Peak Current: 120A / 760A
- Motor Type: Sensorless / Sensored Brushless Motor (only sensorless mode)
- Aplications: 1/10 Short course truck, Monster truck
- Motor Limit: With 3S< 4000Kv 3660 size & With 4S< 2600Kv 4268 size motor
- Lipo Cells: 2-4S
- BEC Output: 6V / 7.4V adjustable, continuous current 5A (Switch-mode)
- Cooling Fan: Powered by built-in BEC
- Size: 52.8 x 39.8 x 38.2mm
- Weight: 119g (Wires & connectors included)
- Programming Port: Independent programming port
