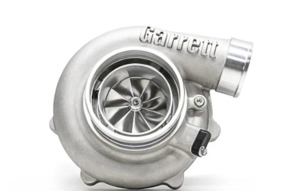

Genuine Garrett G25-550 Super Core

Buy quality products from the knowledgeable turbo specialists with 15 years in the business - Turbo Bits
Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.
The most powerful small frame turbocharger on the market
The G-Series G25-550 and the G25-660 turbochargers are compatible with 1.4L - 3.0L engine displacements and capable of producing up to 550 and 660 horsepower. G Series 25 turbochargers are smaller and outflow all comparable products on the market. New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.
Turbo Family: G25-550
Compressor Inducer: 48mm
Compressor Exducer: 60mm
Compressor Spec: 65T
Turbine Inducer: 54mm
Turbine Exducer: 49mm
Turbine Spec: 84T
Compressor A/R:.70
Bearing Type: Ball Bearing
Bearing Cooling: Oil & Water
Flange Details:
Compressor Inlet Flange: 3.0" Hose
Compressor Outlet Flange: 2.0" Hose
Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Suits Engine Size: 1.4 to 3 Litre
Expected Power Output: 300hp to 550hp

G25 Turbine housing.72A/r VBSE EWG - 740902-0069
G25 Turbine housing.92A/r VBSE EWG - 740902-0068
Turbo Speed Sensor Kit - Street - 781328-0003
Turbo Speed Sensor Kit - Pro - 781328-0004
Turbine Inlet Flange V/Band - 95364
Turbine Outlet Flange V/band - 774175-0001
Turbine inlet V/band Clamp - 826466-0001
Turbine Outlet V/band Clamp - 446397-0364
Oil Drain Flange - 95005
