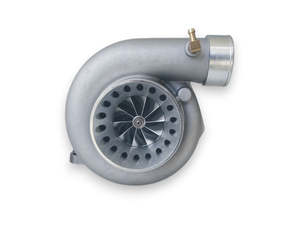

GTX3582 Turbo

Buy quality products from the knowledgeable turbo specialists with 15 years in the business - Turbo Bits

Brand New - Turbo Bits
Model: GTX3582 Gen 2
Bearing System: Journal Bearing or Ball Bearing Option
Flange: T3
Compressor: A/R.70 - Anti Surge
Turbine: A/R.63 - 90mm V-Band
HP Rating: 400-800hp
Engine size: 1800cc to 4500cc
Comes with fitting kit

More Details:

Featuring the updated generation 2 design, billet compressor wheel for a faster spool up. With the multiple rear turbine hosing options this turbo, it can be sized from smaller displacement 4 and 6 cylinder engines up to an engine with 4500cc of displacement, as a twin turbo set up, up to 8000cc. Feel free to to discuss the best set up for your application if unsure on which is the best option for your build.

Model:
GTX3582

COMPRESSOR:
A/R 0.70 Anti Surge compressor cover
Air inlet 4.00"
Air outlet: 2.50"
Billet Compressor Wheel
Inducer - 66.00mm
Exducer - 82.00mm

TURBINE DETAILS:
Exhaust outlet: 90mm V-Band
Turbine Wheel Dimensions:
Inducer - 68.00mm
Exducer - 62.00mm
