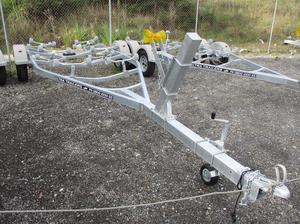

Model 610 Super Heavy Duty Boat Trailer

Boats 18 - 20ft / 5.5 - 6.1m : Super Heavy Duty Single Axle Boat Trailer Model 610

Ultra boat trailers are built ultra tough and the unique design means your boat sits much lower for easier launch/retrieve.

Features:

- Single Axle
- Drain Plug - Bow Eye length between 5040mm - 5940mm
- 24 Wobble Rollers
- Cable Brakes are standard on this model
- Fully hot dip galvanized
- Galvanized hubs and springs
- All bolts and nuts are galvanized or stainless
- Galvanized wind up jockey wheel
- Heavy duty light brackets
- LED submersible lights with flat plug
- 7 pin curly cord
- Heavy duty guards you can stand on
- 185R14 heavy duty tyre/rim rated at 850kg each
- Stud Pattern 5
- Heavy duty winch post and winch bracket (post 70 x 70mm)
- 5 to 1 winch with synthetic rope
- Fully adjustable winch post, axles, rollers or pads to suit any hull
- Bearing buddies fitted as standard
- 100 x 50 x 4mm main chassis
- 100 x 100mm drawbar
- Springs 5 Leaf
- Width between guards 1955mm, outside guards 2400mm
- Tare 400kgs (trailer weight)
- Payload 1200kgs (weight the trailer can carry)
- GVM 1600kgs (total weight)

On-road Costs:

- WOF Registration $150

Fitting Service:

- Boat Fitting $250

Customise your Boat Trailer by adding options such as:

- Keel Rollers
- Steel or Galv Guards
- Spare Wheel
- Spare Wheel Bracket
- Hot Wheel Rim Label
- Boat Fitting

To view our full selection of brake options, parts and add on options click here

Call now to place your order!
