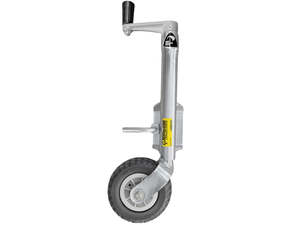

Heavy-Duty Jockey Wheel

The a robust and reliable solution designed for trailers requiring a durable and easy-to-operate support mechanism. 🔧 Technical Specifications

Load Capacity: 200 kg

Wheel Dimensions: 190 mm diameter x 75 mm width

Wheel Material: Solid rubber tyre with a nylon hub

Mounting Type: Swivel bracket with top-wind handle

Adjustment Range: Closed height of 550 mm; extends up to 800 mm

Finish: Zinc-plated for enhanced corrosion resistance

Swivel Mechanism: Spring-loaded pull-pin allows 90-degree rotation for stowing

Grease Nipple: Facilitates easy lubrication of the thread, extending lifespan

Angled Bracket: Securely locks the jockey wheel in place during travel

Product Code: CP14SNLP

- NOTE: Not included with mounting plate. ✅ Key Benefits

Durability: Constructed with high-quality materials to withstand heavy loads and frequent use.

Ease of Use: Top-wind handle and swivel mechanism allow for effortless operation and stowing.

Maintenance-Friendly: Grease nipple ensures easy maintenance, prolonging the product's lifespan.

Versatility: Suitable for a wide range of trailer types and applications. 🛠️ Practical Applications

Ideal for use in boat trailers, caravans, utility trailers, and other heavy-duty towing applications.

Suitable for both commercial and recreational use where reliable trailer support is essential. 📐 Helpful Diagrams / Measurements

For visual reference and to assist customers in understanding the product dimensions and installation, consider the following:

- See Picture

Note: Images are for illustrative purposes and may not depict the exact product. 🧰 Mounting Plate Options

This jockey wheel does not include a mounting plate. Compatible mounting plates are available separately:

U-Bolt Swivel Plate (SB1456): 8mm thick, 150mm tall – suitable for 100mm drawbar height.

U-Bolt Swivel Plate (SB1414): 8mm thick, 100mm tall – suitable for 70mm drawbar height.

Ensure the appropriate mounting plate is selected based on your trailer's drawbar specifications. 🛠️ Installation Instructions

Mounting: Attach the swivel bracket to the trailer's drawbar using appropriate bolts (not included). Ensure the bracket is securely fastened.

Operation: Use the top-wind handle to raise or lower the trailer coupling as needed.

Stowing: When not in use, pull the spring-loaded pin to swivel the wheel into the stowed position. Ensure the pin locks securely.
