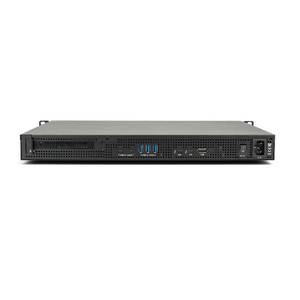

OWC Flex 1U4

Combine four NVMe M.2 SSDs into the world’s first 3.5-inch U.2 carrier shuttle to create a swappable, massive capacity RAID solution.

Shop OWC U2 Shuttle »
OWC U2 ShuttleOne

Convert an NVMe M.2 “blade" style SSD into a swappable 2.5-inch U.2 SSD with the peace of mind that your drive is protected by the full metal, heat dissipating adapter.

Shop OWC U2 ShuttleOne »

Includes

(1)
(1) 0.7M Thunderbolt Cable
(1) Rack Mounting Hardware for 19-26" Racks and Cabinets
(1) Quick Start Guide for
(1) User Guide for
(1) 3 Years of SoftRAID Premium Access (License located on device)
(1) Quick Start Guide for OWC SoftRAID (Digital)
1 Year Warranty Specs

Drive Bays
4 bays supporting: 2.5-inch SATA HDDs, 2.5-inch SATA SSDs, 3.5-inch SATA HDDs, 3.5-inch SATA SSDs, 2.5-inch U.2 SSDs, 3.5-inch U.2 SSDs, M.2 SSDs (with M.2 to U.2 adapter), 2.5-inch SAS HDDs (with SAS drive controller card), 2.5-inch SAS SSDs (with SAS drive controller card), 3.5-inch SAS HDDs (with SAS drive controller card), 3.5-inch SAS SSDs (with SAS drive controller card)
Bays 1-2 each support x4 lanes PCIe, bays 3-4 each support x1 lane PCIe

Plug and Play
Yes
Hot Swap Support
Yes
Hot Plug Support
Yes

Boot Support
Boot Camp is not supported.

Expansion Slots
(1) Full-height, half-length, single width PCIe 3.0 x16 slot (physical) at x4 speed
Device Ports
(1) Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
(1) Thunderbolt 3 (USB-C) Port
(2) USB 3.2 Gen 2 Type-C Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
(3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
(1) DisplayPort Port

Power Delivery
One Thunderbolt 3 port with 85W power delivery
One Thunderbolt 3 port with 15W power delivery
Two USB-C ports with 15W power delivery

Display Support
Up to two 4K displays @ 60Hz,
or one 8K display @ 60Hz,
or one 4K display @ 120Hz,
or one 5K display @ 60Hz

Display Support by Port
Thunderbolt 3 (Titan Ridge): Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 3 display or other display that supports USB-C connections and DisplayPort 1.4
DisplayPort 1.4: Up to 8K @ 60Hz or 4K @ 120Hz
