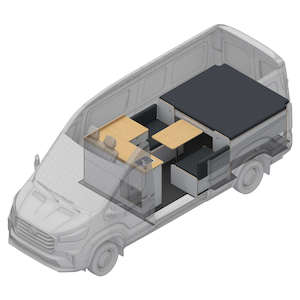

WAIHI Kit

Built for life on the road with bikes, boards, and a little one in tow — this conversion kit is designed around a high fixed rear bed with huge gear storage underneath. Ideal for couples or young families, it’s compatible with three-seat vans like the Ford Transit, LDV Deliver 9, and Mercedes Sprinter.

With a permanent rear bed (1750mm x 1500mm), there’s no need to pack down each night — and with the under-bed garage space measuring 1720mm long, 1000mm wide, and 750mm high, you’ve got more than enough room for mountain bikes, skis, or bulky camping gear.

A second set of twin seats converts into a 730mm wide single bed, perfect for a child or guest. The front of the van offers space for a full upright fridge, a fixed toilet, and all the storage you’ll need — all designed to meet New Zealand’s latest green warrant self-containment regulations.

Specifications

- Main Dimensions: 175cm x 150cm
- Second Bed: 175cm x 73cm
- Seating for 3 people
- Storage Volume: Over 1020L under-bed garage
- Suitable Fridges: Upright Dometic NRX 60C , Brass Monkey 65L
- Self-containment: Built to green warrant standards
- Sliding Doors: Compatible with single or dual sliding door vans
- Floor panels are not included

Suitable Vans

- Ford Transit 2014 LWB
- LDV Deliver 9 2018
- Mercedes Sprinter 2018 MWB

Our Camper Van Conversion Kits are made and designed by Vanlifer in New Zealand. Available for collection from Auckland, Wellington, and Christchurch.
