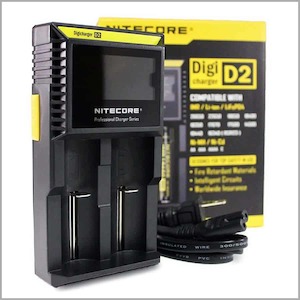

Nitecore Intellicharger D2 LCD Battery Charger

Nitecore D2 is universal smart charger compatible with cylindrical rechargeable batteries. Intellicharger Battery Charger comes with D2 Charger, charge adapter, Warranty Card. 4 plug types.

The Nitecore D2 is a universal smart charger compatible with almost all cylindrical rechargeable batteries, thus eliminating the need to own several chargers. The D2 automatically detects Li-ion, Ni-MH and Ni-Cd batteries, and through manual selection is also capable of charging LiFePO4 batteries.

Attention: Distributors / Wholesalers may have some risks to sell Nitecore products in Germany from exclusive distributor.

Parameters

Input: AC 100-240V 50/60Hz 0.25A(MAX), DC 12V 1A

Output voltage: 4.2V ±1% / 3.7V ±1% / 1.48V ±1%

Output current: 500mA x 2

Compatible with:

Li-ion / IMR / LiFePO4: 26650, 22650, 18650, 17670, 18490, 17500, 18350, 16340 (RCR123), 14500, 10440

Ni-MH / Ni-Cd: AA, AAA, AAAA, C

Dimensions: 143mm× 74mm×36mm

This product comes with

- 1x Nitecore D2 Charger
- 1 x charge adapter
- 1x User Manual
- 1x Warranty Card

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

4 plug types available Integrated digital LCD screen. 2 buttons: MODE and SLOT. Intellligent circurity. Global insurance.

Features

1.Capable of charging 2 batteries simultaneously

2. Each of the two battery slots monitors and charges independently

3. Compatible with and identifies Li-ion (26650, 22650, 18650, 17670, 18490, 17500, 18350, 16340(RCR123), 14500, 10440), Ni-MH and Ni-Cd (AA, AAA, AAAA, C) rechargeable batteries

4. Optimized charging design for IMR batteries

5. Integrated LCD panel clearly displays charging parameters and progress

6. Two conveniently located side buttons allow easy selection of specific battery types and charging parameters

7. Intelligent circuitry detects the battery type and status before entering automatic charge mode (CC, CV, dV/dt)

8. Automatically detects battery power status and selects the appropriate voltage and charge mode (with the exception of LiFePO4 batteries which require manual selection)

9. Compatible with LiFePO4 batteries

10. Compatible with small capacity batteries

11. Automatically stops charging when complete

12. Features over-charge prevention to protect batteries

13. Features temperature monitoring to prevent overheating

14. Made from durable ABS (fire retardant / flame resistant)

15. Features reverse polarity protection

16. Designed for optimal heat dissipation

17. Certified by RoHS, CE, FCC and CEC

1. Plug one end of the power cord or car charging adapter. Plug the other end of the cord into an applicable outlet. The LCD display and all battery indicator bars will illuminate as the charger runs a quick self-test. When test is complete, the name of the product will appear on the screen, the bars will dim and the charger will enter into stand-by mode. If no batteries are detected within 1 minute, the charger will automatically enter Eco Mode (the LCD screen will turn off). When a battery is installed while in Eco Mode, simply press any button to activate the LCD screen.

2. The D2 features two charging slots,each of which charges and monitors a battery independently. Rechargeable batteries of differing chemistries and voltages may be charged simultaneously using either 1or 2 of the charging slots. When inserting a battery, ensure the positive and negative ends correspond with the positive ( ) and negative(-) symbols on the charger. Incorrect installation will result in failure to initiate the charging process.

Note: The D2 is capable of charging 3.7v Li-ion rechargeable cells, 1.2v, Ni-MH/Ni-Cd rechargeable batteries and 3.2v LiFePO4 batteries. See above for description of battery sizes.

3.When a battery is first inserted the D2 will run a short test causing the battery indicator bars to illuminate in sequence from the bottom to the top. When the test is complete, the D2 will enter tint charging mode. If any unusual circumstances have been detected, e.g. a backward battery installation, the battery indicator bars will blink rapidly and “Err" will be presented on the screen to urge an immediate removal of the battery.

4. While in charging mode, the battery indicator bars will blink rhythmically to indicate the on-going charging process. The battery’s power status and charging process is indicated by the num
