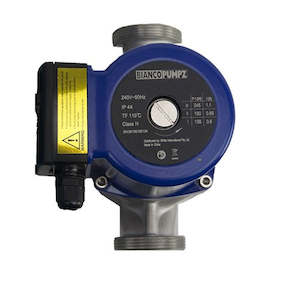

Bianco Circulating pump - Stainless BIA C3280-180

Technical Specifications Brand Bianco Pumpz Product Type Circulator Pump Suitable For Solar Hot Water Flow Range Category b. 100 - 199 L/min Flow Rate (L/min) 130 L/min Head Range Category a. 0 - 39 m Max Head (m) 8 m Port Size Outlet 2" BSPM outlet Warranty (months) 24 Months Volts 240 V

This is a pump used for domestic hot water circulating. The Stainless steel housing makes it suitable for underfloor heating. It is maintenance free and is low in noise. Comes complete with 2" F x 1-1/4" F unions. Features

The pump is characterised by:

- Circulation body materials suitable for potable water
- 3 speed operation
- Flows to 130 l/min
- Heads to 8m

Liquid temperature: 2OC - 110OC

Materials: Pump body: Stainless Steel 304 SS

Impeller: Corrosion resistant composite PPO

Back Plate and Rotor Can: Stainless Steel 304 SS

Unions: 2" F x 1-1/4"F Unions Stainless Steel 304 SS

Installation: Maximum ambient temperature: 40OC

Maximum Operating Pressure: 10 bar

Port spacing: 180mm

Port size: 2" BSPM (1-1/4" BSPF if used with supplied unions)

Electrical Data: 230V
