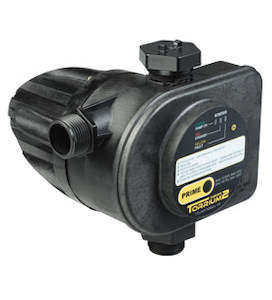

DAVEY Torrium® 2 Controller TT45

Torrium®2 is an intelligent controller designed to control a pressure boosting pump to ensure the water is supplied with constant flow resulting in even water pressure to domestic households. It incorporates several levels of pump protection. Applications

- Ideal for converting manual pumps to constant flow water pressure systems
- Suits pumps supplying clean, non-volatile liquids without fibres or solids in such applications as:
- Household water supply
- Irrigation
- Water transfer
- Washing systems
- Pressure boosting Specifications

- Voltage: 110–240V
- Phase: Single, 50 Hz
- Current: 10A
- Maximum motor size – 110V: 0.9kW (1.2 hp)
- Maximum motor size – 220V: 1.8kW (2.4 hp)
- Surge protection
- Plug & socket type: 3 pin
- Maximum system pressure: 1000 kPa
- Capacities: up to 200 lpm
- Recommended pump shut-off head range:

- TT45: 150 to 450 kPa
- TT70: 450 to 700 kPa
- Maximum water temperature: 70ºC
- Minimum water temperature: 1ºC Features

- Constant Flow and Even Water Pressure
- Quick Cut-in for Even Pressure
- Adaptive Starting
- Easy Status Check
- Pressure Indicator Window
- Greater Hydraulic Performance
- Reliability
- Dry Run Protection and Auto Restart
- Pump Protection – High Water Temperature Cut-out
- Pump Protection – Excessive Electrical Current
- Corrosion and Scale Resistance
- Extra Draw-off Capacity
- Power Surge Protection for Torrium®2
- Ease of Installation
- Electrical Connection

Warranty: 2 Years
