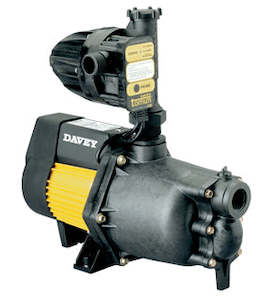

DAVEY XJ50T Jet Assisted Pressure Pump with Torrium2 Controller

Robust & compact, single stage, jet-assisted centrifugal pump with Torrium2® constant flow control and loss of prime device for automatic water pressure. Designed for medium to large size, single and multi-storey homes.

Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion. See drop-down menu.

A free three-way tee is provided with any pump and pressure tank combination. Applications

- Household water supply
- Irrigation
- Water transfer
- Washing systems
- Pressure boosting Technical Specifications

- Power: 840W (1.1 HP)
- Single phase with standard 3 pin plug
- Max flow rate: 50 litres per minute
- Max pressure: 66 psi
- Self priming: 7m suction
- Max discharge head: 46 metres
- Inlet size: 1" BSP (25mm)
- Outlet size: 1" BSP (25mm)
- Built-in thermal overload protection
- Insulation class B
- IP55 protection
- Liquid temperature range: 1 – 50ºC
- Max operating pressure: 4.8 bar Features

- Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
- Starts automatically when the tap is turned on
- Torrium2® cut-in pressure is normally 80% of the pump’s last shut-off head
- Operates constantly from low flow to full flow
- Stops automatically when the last tap is turned off
- Run Dry Protection
- Corrosion-resistant stainless steel construction
- Stainless steel pump housing
- Stainless steel motor shaft
- Built-in thermal overload protection

Warranty: 2 Years
