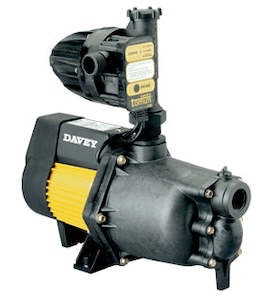

DAVEY XJ70T Jet Assisted Pressure Pump with Torrium2 Controller

Robust & compact, single stage, jet assisted centrifugal pump with Torrium2® constant flow control and loss of prime device for automatic water pressure. Designed for medium to large size, single and multi-storey homes.

Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.

A free three-way tee is provided with any pump and pressure tank combination. APPLICATIONS:

Ideal for pumping clean, nonvolatile liquids without fibres or solids in such applications as:

- Household water supply
- Irrigation
- Water transfer
- Washing systems
- Pressure boosting TECHNICAL SPECIFICATIONS:

- Power -1150W (1.5 HP)
- Single phase with standard 3 pin plug
- Max Flow rate: 70 Litres per minute
- Max Pressure: 68 psi
- Self Priming: 7m Suction
- Max discharge head: 48 metres
- Inlet size: 1" inch BSP (25mm)
- Outlet size: 1" inch BSP (25mm)
- Built in thermal overload protection
- Insulation class B
- IP55 Protection
- Liquid temperature range: 1 - 50ºC
- Max operating pressure: 4.8 bar FEATURES:

- Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
- Starts automatically when the tap is turned on
- Torrium2® cut-in pressure is normally 80% of the pumps last shut-off head.
- Operates constantly from low flow to full flow
- Stops automatically when the last tap is turned off
- Run Dry Protection
- Corrosion resistant stainless steel construction
- Stainless steel pump housing
- Stainless steel motor shaft
- Built in thermal overload protection

2 Year Warranty
