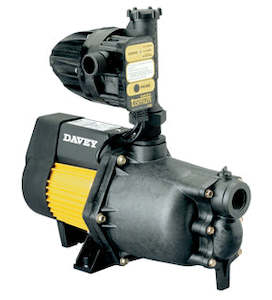

DAVEY XJ90T Jet Assisted Pressure Pump with Torrium2 Controller
Economical compact home pressure system driven by a single stage jet-assisted centrifugal pump, with electronic Torrium controller included.
Tap Guide: 6 Taps
Suited for large homes & families, with capacity for garden watering as well.
Ideal for pumping clean, non-volatile liquids without fibres or solids in such applications as:
- Household water supply
- Irrigation
- Water transfer
- Pressure boosting Performance
- Capacity: 90 L/min
- Max Head: 46 m
- Max Suction Lift: 7 m Technical Specifications
- Power: 1400W (1.8 HP)
- Single phase with standard 3 pin plug
- Max flow rate: 90 litres per minute
- Max pressure: 66 psi
- Self priming: 7 m suction
- Max discharge head: 46 metres
- Inlet size: 1.25" BSP (32mm)
- Outlet size: 1" BSP (25mm)
- Built-in thermal overload protection
- Insulation class B
- IP55 protection
- Liquid temperature range: 1 – 50ºC
- Max operating pressure: 4.8 bar Features
- Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
- Starts automatically when the tap is turned on
- Torrium2® cut-in pressure is normally 80% of the pump’s last shut-off head
- Operates constantly from low flow to full flow
- Stops automatically when the last tap is turned off
- Run Dry Protection
- Corrosion-resistant stainless steel construction
- Stainless steel pump housing
- Stainless steel motor shaft
- Built-in thermal overload protection
Warranty: 2 Years
