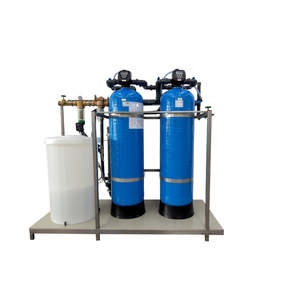

ECOTROL-P Duplex Water Softeners

From 5m to 53 m3/hour, the Sensotrol range has a softener to suit most applications. Being Duplex, continuous soft water can be guaranteed. These systems are high quality designed and pre fabricated to ensure a high quality installation and long life.

CHARACTERISTICS

- Sensor-controlled alternating water softening units
- Permanent soft water supply, sensor-controlled regeneration and automatic alternation to the other vessel upon depletion of the ion exchange resin
- High operational safety thanks to monitoring of the operating conditions, regeneration and brine formation
- Sophisticated SENSOTROL controller with Profinet option and optional process visualisation
- Monodisperse quality exchange resin
- From size 400 on resin in bags for on-site filling

ADVANTAGES

- Lower water and salt consumption thanks to the optimisation of resin capacity
- Particularly suitable and economical if raw water hardness fluctuates
- Relevant operating parameters are logged
- Many freely programmable inputs/outputs for additional options
- High-quality brine tank with salt shortage switch

OPTIONS

- Pipework assembled, mounted, fixed into position, stainless steel skid
- Backflow preventer, fine filter, blending valves
- Hardness monitoring
- Recirculation pumps

SPECIFICATIONS
Controller: Clack Operating pressure: 3 – 8 bar Operating temperature: 5 – 35 °C Conditions of use: The unit may only be used for softening feed water of drinking water quality or appropriately pre-treated well or surface water. The following parameters must be maintained in the feed water: Free chlorine:
not detectable Iron< 0.2 mg/l Manganese:
< 0.05 mg/l
