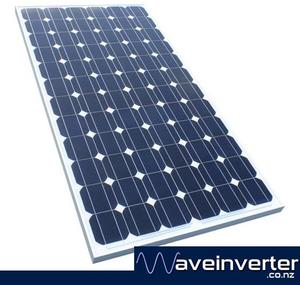

380w OSDASOLAR PERC Mono crystalline Solar Panel

SKU: OSPN01 Categories: Solar, Solar Panels Tags: 340w, Solar Panel

- Additional information
- Reviews (0) Maximum power (Pmax)

Voltage at max. power (Vmp)

Current at max. power (Imp)

Open Circuit Voltage (Voc)

Short Circuit Current (Isc)

Tolerance

Physical Dimensions

Size

Weight

Glass

frame

J-Box

Cables/Connector

Connectors on cables

Connectors type

Operating Temperature

Max System Voltage

Max Series Fuse Rating

Normal Operating Cell Temperature

Temperature Coefficient of PMPP

Temperature Coefficient of VOC

Temperature Coefficient of ISC 380W

39.02V

9.74A

47.80V

10.67A

0±3%

1956 992 40mm

22.5 KG

High transparency solar glass 3.2mm

Anonized aluminum alloy

IP 65 rated

Photovoltaic Technology cable 90cm long 4.0mm2

YES

MC4

40~ 85⁰

1000VDC

20A

47⁰(±2⁰)

-0.47%/⁰

-0.38%/ ⁰

0.04%/ ⁰

With Anti-Reflective Self-Cleaning Glass technology. Additional information Weight 25 kg Revie...
