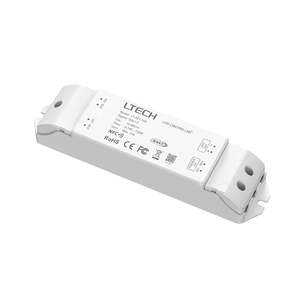

Ltech LT-401-15A DALI2 CV Controller, 12-48V, 15A, with NFC Setting

The LT-401-15A is a high-performance single-channel constant voltage DALI LED driver, engineered for professional indoor lighting applications. Supporting the DALI bus standard (IEC62386-101, 102, 207), it delivers up to 15A output current with a maximum load of 720W. The driver offers 0–100% dimming down to 0.1% via PWM digital dimming without affecting LED colour rendering. Through the NFC Lighting App or NFC programmer, users can easily configure DALI address, dimming curve, PWM frequency, and other advanced parameters. Housed in a fully protected, durable plastic enclosure, it ensures safe and reliable operation with multiple protection features.

Key Features

Single-channel constant voltage DALI LED driver

Output voltage: 12–48VDC, max output current: 15A

Maximum output power: up to 720W

Dimming range: 0–100%, ultra-low 0.1% dimming

PWM digital dimming preserves LED colour rendering index

Fully compliant with DALI standards: IEC62386-101, 102, 207

NFC programming for DALI address, dimming curve, PWM frequency, and more

Multiple protections: short circuit, overtemperature, overcurrent, reverse polarity (auto recovery)

Compact size: 175×44×30 mm

Adjustable PWM frequency options from 300Hz to 21.6kHz

Suitable for indoor LED lighting environments

5-year warranty
