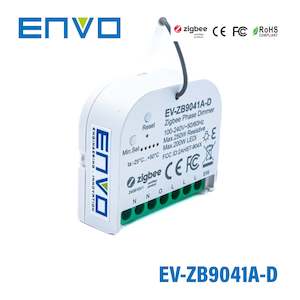

ENVO ZigbBee Mini In Wall AC Phase Smart Dimmer

Features:

- Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
- Advanced microprocessor control
- Implemented algorithm of smart light source detection
- Active power and energy metering
- Soft start function
- Innovative minimum dimming level and startup brightness setting function
- Works with various types of switches – momentary, toggle, three-way,.
- Active element: semiconductor electronic switch
- To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
- The Bypass is an extension unit
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture. General Specification

Input Voltage

100-240VAC

Output Voltage

100-240VAC

Output Current

0.1-1.1A

Dimmable LED lamps

200W @ 230V

100W @ 110V

Dimmable LED drivers

200W @ 230V

100W @ 110V

Incandescent lighting, HV Halogen lamps

250W @ 230V

125W @ 110V

Low voltage halogen lighting with electronic transformers

200W @ 230V

100W @ 110V

Dimension (LxWxH)

42x38x16mm

Store:: Wellforces

SKU:: EV-ZB9041A-D

Price:: $67.18
