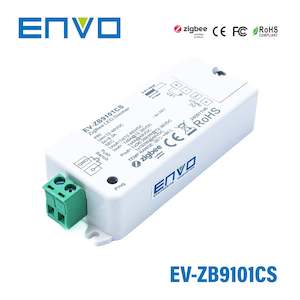

ENVO ZigBee Single Colour Mini Controller 12-36V 8A 1 Channel

- ZigBee LED dimming light device based on latest ZigBee 3.0 protocol
- Enables to control ON/OFF and light intensity of connected LED lights
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Supports self-forming zigbee network without coordinator
- Enables to add devices to the self-formed zigbee network
- Supports slef-forming zigbee network without coordinator and add other devices to the network
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power remotes
- Compatible with universal ZigBee gateway products
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture. General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

12-48VDC

Output Current

1x8A@12-36VDC

1x4A@48VDC

Output Power

1x(96-288)W@12-36VDC

1x192W@48VDC

Output Type

Constant voltage

Dimension (LxWxH)

95x37x20mm
