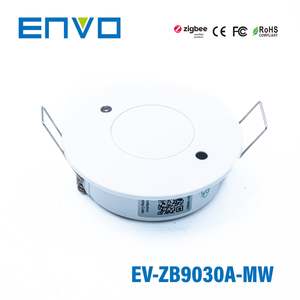

ENVO ZigBee Ceiling Mounted Microwave Sensor, 0-10V Dimming

- Zigbee 3.0 compliant
- Microwave motion detection, dual antennas, long detection range
- Daylight harvesting
- Works with 0-10V dim-to-off LED drivers
- Autonomous sensor-based control
- OTA firmware upgrade
- Ceiling recessed installation
- Can be use for indoor applications
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Compatible with universal Zigbee platforms that support sensor General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

12/24 VDC

Current Consumption

< 30mA (when dimming method = sink)

Dimming Output

4mA (sink) / 20mA (source)

Status Indicators

Red (motion detection)

Radio Frequency

2.4 GHz

Wireless Range

100 feet (30m) Line of Sight

Radio Certification

FCC/IC, CE

Dimension (LxWxH)

Φ83xH21mm
