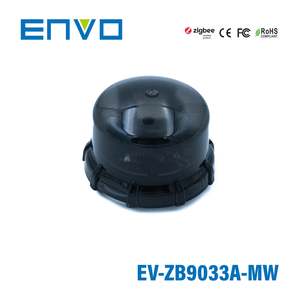

ENVO ZigBee Microwave Sensor IP65 with ZHAGA Interface Socket

- Zigbee 3.0 compliant
- Microwave motion detection, long detection range
- Daylight harvesting
- Works with 0-10V dim-to-off LED drivers
- Autonomous sensor-based control
- OTA firmware upgrade
- Zhaga book 18 socket
- Plug & Play
- IP65 rating, can be used for outdoor luminaires
- Easily fit into various luminaires with standard zhaga interface socket
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Compatible with universal Zigbee platforms that support sensor General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

12/24 VDC

Current Consumption

< 30mA

Dimming Control

Analog (0-10V)

Dimming Output

4mA (sink) / 20mA (source)

Status Indicators

Red (motion detection)

Radio Frequency

2.4 GHz

Wireless Range

100 feet (30m) Line of Sight

Radio Certification

FCC/IC, CE

Dimension (LxWxH)

Φ35xH30mm
