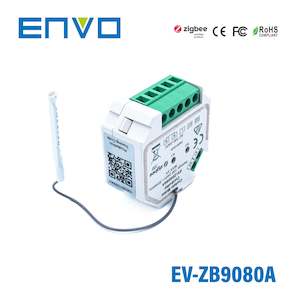

ENVO ZigBee Blinds Controller - On/Off and Level Control

- Zigbee curtain motor controller based on latest ZigBee 3.0 protocol
- Full support for various curtain types: roller blinds, shutter blinds, drapes,.
- Controlled by smart app or directly by zigbee remote
- Local control with external switches even if not added to a zigbee network
- Accurate control, supports both ON/OFF and level control
- ZigBee end device that supports Touchlink commissioning
- Supports self-forming zigbee network without coordinator
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power feature and can bind max. 20 zigbee green power remotes
- Compatible with universal ZigBee gateway products
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture. General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

AC100-240V

Output Voltage

AC100-240V

Max. Load Current

2A

Relative Humidity

8% to 80%

Operating Temperature

0 to 40°C

Dimension (LxWxH)

45.5x45x20.3mm
