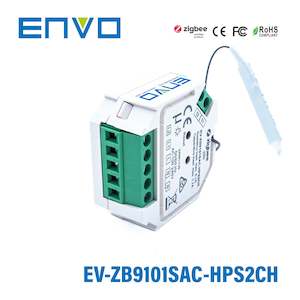

ENVO ZigBee 2Gang In-wall Switch - On/Off Control

- 2-gang ZigBee in-wall switch based on latest ZigBee 3.0 protocol
- 100-240VAC wide input and output voltage
- Supports resistive loads and capacitive loads
- 2 channels output, max. load 5.1A/CH
- Input and output with screw terminals, safe and reliable
- Enables to control ON/OFF of connected load
- ZigBee device with 2 endpoints which can be controlled separately
- ZigBee end device that supports Touchlink commissioning
- Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
- Supports self-forming zigbee network without coordinator and add other devices to the network
- Supports find and bind mode to bind a ZigBee remote
- Supports zigbee green power and can bind max. 20 zigbee green power switches
- Compatible with universal ZigBee gateway products
- Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches
- Active power and energy metering
- Mini Size, Easy to be installed into a standard wall box
- Radio Frequency : 2.4GHz
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture. General Specification

Zigbee Protocol

Zigbee 3.0

Input Voltage

100-240VAC

Output Voltage

100-240VAC

Output Channel

2 Channels

Max. Load

Resistive load: max. 5.1A/CH

Capacitive load: max. 1.7A/CH

Input Type

Constant voltage

Dimension (LxWxH)

45.5x45x20.3mm
