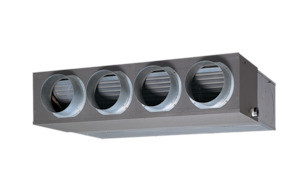

Fujitsu ARTG36LATU Ducted Heat Pump (includes installation)

Fujitsu Inverter Slim Line Ducted Heat Pump10kW

ARTG36LATU
10.0KW(C)/11.2KW(H)

Ducted air conditioning is surely the ultimate in comfort. The Fujitsu ducted models offer quiet, efficient operation, are easy to maintain, and operated via a wall mounted LCD control that controls all functions of the system.

- Automatic Air Flow Adjustment
- Program Timer
- Control Port
- All Dc
- Auto-changeover
- Fresh Air Intake
- Auto Restart
- Economy Mode
- On-off Timer
- Blue Fin Heat Exchanger
- Connectable Distributing Duct
- Connectable Fresh Air Duct
- Weekly Timer Specifications

Model No. – Indoor ARTA36LATU
Model No. – Outdoor AOTA36LCTL
Reverse Cycle System Yes
Capacity Class –
Cooling Capacity (Watts) 10,000
Cooling Capacity (BTU/h) 34,100
Range (Watts) 3,800 – 11,200
Range (BTU/h) 13,000 – 38,200
Heating Capacity (Watts) 11,200
Heating Capacity (BTU/h) 38,200
Range (Watts) 4,000 – 14,000
Range (BTU/h) 13,700 – 47,800
Power Supply (Volts) 240
Phase-Frequency (Ph – Hz) 1 – 50
Power Supply Attachment Outdoor
Plug Size (If Applicable) N/A
Running Current, Cooling (Amps) 13
Running Current, Range (Amps) Max: 19.0
Input, Cooling (Watts) 3,110
Input, Range (Watts) Max: 4,660
Running Current, Heating (Amps) 12.7
Running Current, Range (Amps) Max: 20.0
Input, Heating (Watts) 3,020
Input, Range (Watts) Max 4,780
Input (Watts) –
Moisture Removal (l/hr) 3
E.E.R. – Cooling 3.21
C.O.P. – Heating 3.71
Star Rating – Cooling –
Star Rating – Heating –
Fan Speed 4
Air Circulation, High (l/s) 514
Compressor Type DC Rotary
Dimensions – Inside Unit (HxWxD mm) 270 x 1135 x 700
Weight – Inside Unit (kg) 40
Dimensions – Outside Unit (HxWxD mm) 1,290 x 900 x 330
Weight – Outside Unit (kg) 86
I.U. Sound Pressure Level (dBA@1mtr) 40
O.U. Sound Pressure Level (dBA@1mtr) 54
O.U. Sound Power Level (dBA) 68
Refrigerant Type R410A
Connection Pipe Sizes, Gas (mm) 15.88
Connection Pipe Sizes, Liquid (mm) 9.52
Pre Charged Length (Metre) 20
Minimum Pipe Length (Metre) 5
Maximum Pipe Length (Metre) 50
Maximum Pipe Height (Metre) 30
Pipe Connection Methods Flare
Outdoor operating Temp, Cooling Degrees C -15 to 46
Outdoor operating Temp, Heating Degrees C -15 to 24 Warranties

This product comes with a 60 month manufacturer's warranty. Conditions:

- This pricing is for a back-to-back installation only with a maximum pair coil use of 5m. Additional costs may apply based on in-home consultation.

- This offer is only available for installations within the Wellington Region.

- Additional costs may apply for commercial premises, or for residential building companies.
