Spool of 10 m (394″). Stretchability: at least 200 %. No ageing after 6 weeks maximum stretching.- Maximum resistance - 200 g. For supporting the weak muscles of the fingers.- Maximum resistance - 400 g. For most dynamic finger splints.- Maximum resistance - 600 g. For dynamic wrist extension splints or for very persistent finger contractures.

The ORFITUBE ADJUSTER is a structural unit for placing onto a hand orthosis, in order to give the orthosis added adjustable and dynamic action. The dynamic splint can be designed as ‘outrigger with rubber band’ type.The outrigger is adjustable, as biomechanical clues may change over time.5 single Orfitube adjusters 1 Allen wrench.

The Orfitube adjuster kit puts you in full control of longitudinal and lateral position of Orfitubes. The compact design allows you to fix one individual adjuster for each finger. The adjusters are elegant, lightweight, very cost-effective.But there is more than one angle from which you can look at ...

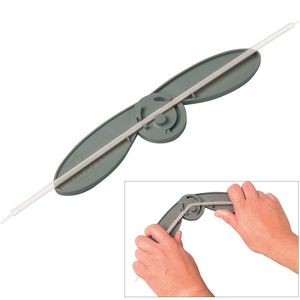

For easy bending of the strong Orfitubes without stress on the thumbs.

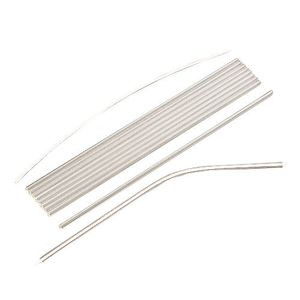

10 tubes of 330 mm (13") long, including 2 bending wires.

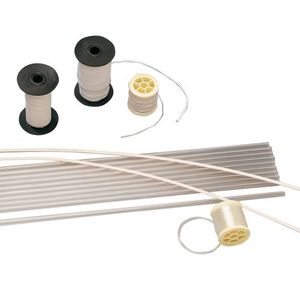

Contains:- 10 tubes of 330 mm (13") long.- 3 different types of elastic thread with different degrees of elastic strength (on a spool).- 1 spool polyester monofilament for an optimal gliding effect (if necessary)- 2 bending wires

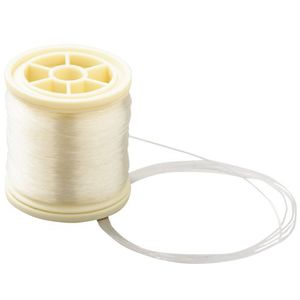

Spool of 75 m (2953").Used to increase the gliding of the elastic thread in the Orfitube, e.g. when the Orfitube is locally kinked and when the length of the elastic is not determined.

20 pieces.Chromium-plated tube ends, fit on all Orfitubes, reducing rubbing of the elastic thread with the tube edge to a minimum.

- 10 pieces : 5 left 5 right.- Torque force when tightened over an angle of 130° : 5000 g.cm.Gauge 1.5 mm (1/16″) – coil diameter 15 mm (3/5″).

- 10 pieces.- Designed to assist the intrinsic muscle weakness, e.g. with ulnar nerve palsy.- The spring can also be turned upside down to increase the spring power.- Torque at full finger extension: ca. 1000 g.cm- Gauge 1 mm – 1/24″ – Coil diameter 4 mm – 1/6″re this product.

Radial nerve patients need two strong assisting extension coils. When recovering, the coils help to rebalance muscle power.Set for one orthosis, contains two pre-cut pieces of Orfit Classic (3.2 mm – 1/8″ non perfo stiff) and 2 lateral coil springs (gauge diameter 1.5 mm (1/16″). Coil diameter 15 mm (3/5″) – Torque force: 5000 g.cm)

For making your own coil springs and outriggers.- Length : 15 m (591″)- Thickness : 1 mm (1/24″)

- 10 pcs.- The short leg is secured between two layers of Orfit Classic.- The long leg is bent to size.- At total finger flexion the spring is tightened up to a torque force of ca. 2000 g.cm.- The spring is especially designed for finer extension assists in combination with an Orfit splint.
