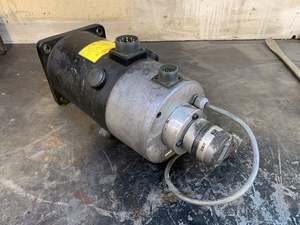

Fanuc 10M DC Servo Motor 12Nm

Fanuc DC Servo Motor Model 10M

Removed from horizontal CNC machining centre being retrofit.

Looks like the motor was fitted as a replacement around 2002, and only run for a year or two before the controller died.

Was the X axis motor.

Fitted with aftermarket BEI 2000 line encoder for use with a Fagor system. Looks like original tacho is still inside yellow cap.

- Torque at stall 12Nm
- Amp at stall 12A
- 165V
- 1500RPM
- 175mm square flange size
- 35mm shaft
