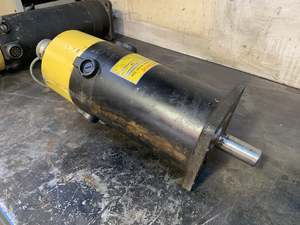

Fanuc 20M DC Servo Motor 23Nm

Fanuc DC Servo Motor Model 20M

Removed from horizontal CNC machining centre being retrofit.

Was the B axis motor.

Fitted with aftermarket BEI 2000 line encoder for use with a Fagor system. Looks like original tacho is still inside yellow cap.

- Torque at stall 23Nm
- Amp at stall 18A
- 213V
- 1500RPM
- 175mm square flange size
- 35mm shaft
