6A RCBO combining RCD, overload and short-circuit protectionSAA-Approved and EESS Registered6A RCBO Specifications:Rated Current: 6ARated Residual Operating Current: 30mANo. of Pole: 1P NRated Voltage: 230/240VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Rupturing/Breaking Capacity: 6000AWorking Temperature: -20 to 70 Degrees CelsiusRelative Humidity

10A RCBO combining RCD, overload and short-circuit protectionSAA-Approved and EESS Registered10A RCBO Specifications:Rated Current: 10ARated Residual Operating Current: 30mANo. of Pole: 1P NRated Voltage: 230/240VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Rupturing/Breaking Capacity: 6000AWorking Temperature: -20 to 70 Degrees CelsiusRelative Humidity

16A RCBO combining RCD, overload and short-circuit protectionSAA-Approved and EESS Registered16A RCBO Specifications:Rated Current: 16ARated Residual Operating Current: 30mANo. of Pole: 1P NRated Voltage: 230/240VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Rupturing/Breaking Capacity: 6000AWorking Temperature: -20 to 70 Degrees CelsiusRelative Humidity

20A RCBO combining RCD, overload and short-circuit protectionSAA-Approved and EESS Registered20A RCBO Specifications:Rated Current: 20ARated Residual Operating Current: 30mANo. of Pole: 1P NRated Voltage: 230/240VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Rupturing/Breaking Capacity: 6000AWorking Temperature: -20 to 70 Degrees CelsiusRelative Humidity

32A RCBO combining RCD, overload and short-circuit protectionSAA-Approved and EESS Registered32A RCBO Specifications:Rated Current: 32ARated Residual Operating Current: 30mANo. of Pole: 1P NRated Voltage: 230/240VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Rupturing/Breaking Capacity: 6000AWorking Temperature: -20 to 70 Degrees CelsiusRelative Humidity

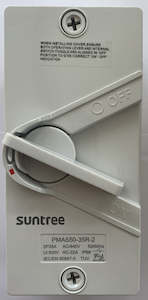

AC Isolating Switch with two M25 cable entry point on the top and bottom of isolator for conduit fittings or cable grommets.Lockable for safe isolation, Chemical and UV resistant, Impact resistant.Specifications:Rated voltage: AC440VRated Current: 35APoles: 2-poleIP Rating: IP66Frequency: 50/60HzWorking Temperature: -5 °C- 60 °CStandard: IEC 60947-3Dimensions:180mm x 90mm x 80mm

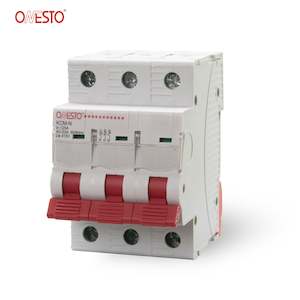

AC 3-Pole Isolator switch specifications:Operating Voltage: 415VACInsulation Voltage: 500VACMax Cable Size: 35mm2Frequency: 50/60HzCurrent: 125AUtilisation Category: AC-22AIP Rating: IP20Working Temperature: -5 °C- 60 °CTest Standards: IEC 60947-3 & IEC60947-1

AC 1-Pole Isolator switch specifications:Operating Voltage: 240VACInsulation Voltage: 500VACMax Cable Size: 35mm2Frequency: 50/60HzCurrent: 125AUtilisation Category: AC-22AIP Rating: IP20Working Temperature: -5 °C- 60 °CTest Standards: IEC 60947-3 & IEC60947-1

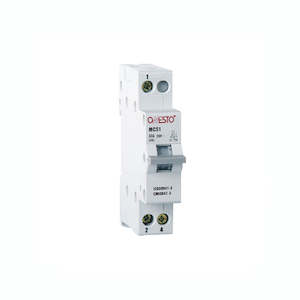

Changeover switches are an essential device for bypassing power supply, switching to alternative or back up power supplies and are handy during routine maintenance or testing.The changeover switch has 3 positions:Position 1: uses the primary power supplyMiddle position: disconnects from all supplies...

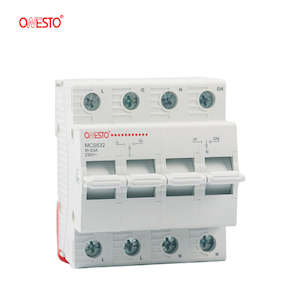

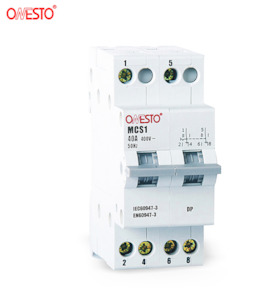

Changeover switches are an essential device for bypassing power supply, switching to alternative power supplies, during routine maintenance/testing and controlling a two-wire auto start from a generator.The changeover switch has 3 positions:Position 1 uses the second poles at the bottom of the chang...

Changeover switches are an essential device for bypassing power supply, switching to alternative power supplies, during routine maintenance/testing and controlling a two-wire auto start from a generator.The changeover switch has 3 positions:Position 1 uses the second poles at the bottom of the chang...

Changeover switches are an essential device for bypassing power supply, switching to alternative power supplies, during routine maintenance/testing and controlling a two-wire auto start from a generator.The changeover switch has 3 positions:Position 1 uses the second poles at the bottom of the chang...

AC 2-Pole Isolator switch specifications:Operating Voltage: 415VACInsulation Voltage: 500VACMax Cable Size: 35mm2Frequency: 50/60HzCurrent: 125AUtilisation Category: AC-22AIP Rating: IP20Working Temperature: -5 °C- 60 °CTest Standards: IEC 60947-3 & IEC60947-1

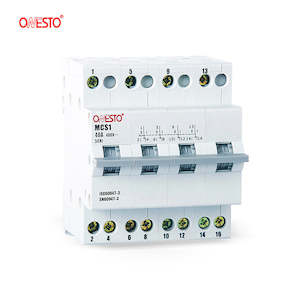

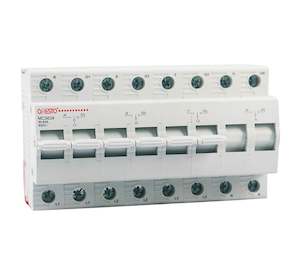

Changeover switches are an essential device for bypassing power supply, switching to alternative or back up power supplies and are handy during routine maintenance or testing.The 4-pole changeover switch can be used on 3phase systems.The changeover switch has 3 positions:Position 1: uses the primary...

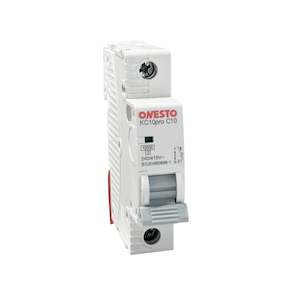

This AC 1-pole Mini Circuit Breaker is rated for 10 Amps.It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.Specifications:Rated Current: 10AMax Voltage: 415VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Maximum Cable Cross Section...

This AC 1-pole Mini Circuit Breaker is rated for 16 Amps.It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.Specifications:Rated Current: 16AMax Voltage: 415VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Maximum Cable Cross Section...

This AC 1-pole Mini Circuit Breaker is rated for 25 Amps.It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.Specifications:Rated Current: 25AMax Voltage: 415VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Maximum Cable Cross Section...

This AC 1-pole Mini Circuit Breaker is rated for 32 Amps.It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.Specifications:Rated Current: 32AMax Voltage: 415VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Maximum Cable Cross Section...

This AC 1-pole Mini Circuit Breaker is rated for 50 Amps.It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.Specifications:Rated Current: 50AMax Voltage: 415VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Maximum Cable Cross Section...

This AC 1-pole Mini Circuit Breaker is rated for 63 Amps.It is 35mm din rail mountable for easy installation in switchboard/circuit breaker enclosure.Specifications:Rated Current: 63AMax Voltage: 415VACIP Rating: IP20Tripping Characteristics: C CurveMechanical Life: 20,000Maximum Cable Cross Section...
