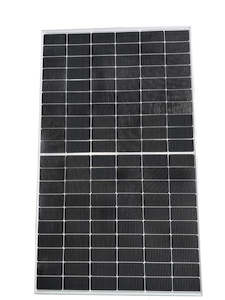

Solar Panel 490W Half Cut Mono-PERC

490W Mono-PERC solar panel features:

- A-Grade PERC Mono-Crystalline Cells to increase efficiency and energy yield
- 16BB Half-Cut cells for lower electrical resistance resulting in higher low light performance
- Tempered solar glass with low reflective properties for maximum photon absorption
- Low-Iron glass for high light transmission
- Corrosion resistant anodised aluminium frame
- IP68 Junction box with built-in bypass diodes

Specifications for 490W Mono-PERC solar panel:

- Maximum Power (Pmax) - 490W
- Maximum Power Voltage (Vmp) - 34.52V
- Maximum Power Current (Imp) - 14.22A
- Open Circuit Voltage (Voc) - 37.41V
- Short Circuit Current (Isc) - 15.34A
- Test Conditions: 25 degrees Celsius @ 1000W/m2
- Maximum System Voltage: 1500VDC
- Atmospheric Mass: 1.5
- Power Tolerance - 3%
- Cell Efficiency: 23.30%
- Module Efficiency STC - 22.63%
- Operating Temperature Range - -40C - 85C
- Number of Cells: 120
- Cell Type: 182mm x 91mm Mono-PERC
- Cell Brand: ZH Solar
- Mechanical Load: 5400Pa
- Wind Pressure: 2400Pa
- Dimensions : 1909mm x 1134mm x 40mm
- Weight: 25kgs

Warranty: 10 Years
Output Power Performance: 25 years at no less than 80%
Standards: IEC61215-1, IEC61215-2, IEC61730-1 and IEC61730-2
Warranty: 10 Years

Compliance: TUV Certification IEC61215-1,IEC61215-2, IEC61730-1 and IEC61730-2 as per AS/NZS5033
Application Class: Class A
Fire Rating: Class C
