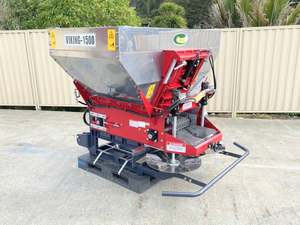

Viking 1500 Chain Fed Spreader 1.32m3
The Iris Viking 1500 Multi Spreader will spread granular fertiliser, compost or lime with a 500mm wide stainless steel hydraulic drive mesh chain conveyor feeding twin spreading discs.
3-point linkage mounted with 1.5-ton capacity Features & Benefits
- Stainless mesh conveyer: It conveys more exact amount of fertilizer or sand and is more durable than rubber conveyors
- Stainless steel parts: A hopper, feeding conveyor belt, spinner disc, vanes and deflector plate
- Relief valve: The durability of the hydraulic motors that rotate the spinner disc is improved by the inclusion of a relief valve (It controls the shock pressure that occurs when the motor stops)
- The speed of the spinner disc and feeding conveyor belt can be controlled by a hydraulic control valve. Specifications: Specifications
Units Hopper Capacity
1.32m3 Nominal Capacity
1500kg. (1.5) tonne Width 1850mm Length 1960mm Height 1458mm
Capacity 780 Litres (0.78m3) Weight 700kg (empty) Spreading width 20-25 meters (180-degree coverage) Attachment 3 Point Link Spinner and shutter system Hydraulic Spinner Discs width 600mm Mesh chain width 500mm Hopper material
Stainless steel Power
Hydraulic Linkage
3-point link mounted Tractor
Category 2
Notes:
Made in Korea by Iris Spreader
