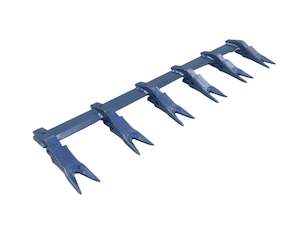

Tooth Bar For Sub Compact Tractor Bucket 1160mm

Improve the digging efficiency of your sub-compact tractor with the Sierra Bucket Tooth Bar. Engineered for sub-compact tractors and universally compatible, this heavy-duty tool is equipped with replaceable cutting teeth and installs easily using 16 mm grub screws that clamp to the cutting edge of the bucket.
The tooth bar boosts your loader’s digging capability with six teeth penetrating the ground more easily than the standard straight cutting edge. Features & Benefits

- Replaceable and interchangeable cutting teeth
- 16 mm cup-point grub screw.
- Simply slide on and tighten set screws to 47-54 Nm using an 8 mm Allen wrench. The tooth bar
- could also be bolted on through these same holes if you wanted to drill your bucket.
- Works with standard material buckets with up to a 12 mm thick cutting edge. Specifications Width of clamp on area 1160mm Overall width tooth to tooth 1170mm Overall depth 300mm Distance tooth protruding from bucket edge 185mm Weight 23KG

Notes

How To Measure For A Bucket Tooth Bar:
Measure the inside width of your bucket. This will determine what width you will need.
Measure the height of your cutting edge. The tooth bar will fit on a cutting edge of up to 12 mm.
